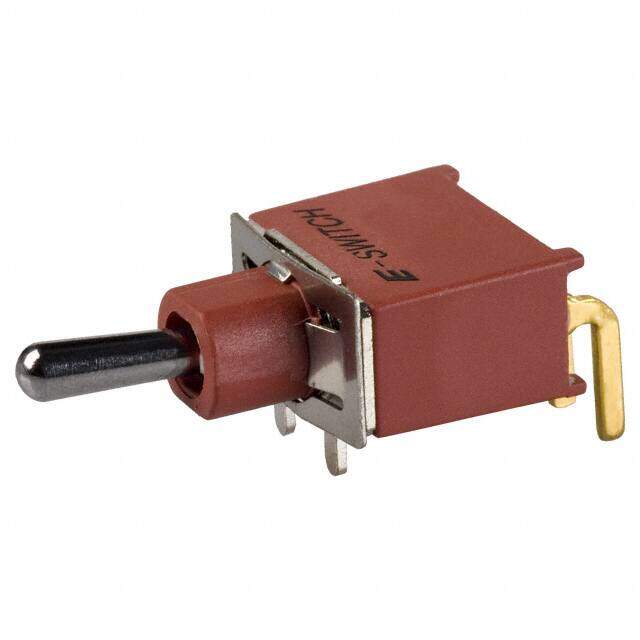

 100AWSP1T2B4M6RE image
Favorite
 100AWSP1T2B4M6RE image
Favorite

100AWSP1T2B4M6RE

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $5.18
Unit Price: USD $5.184281
≥1 USD $5.184281
≥10 USD $4.890834
≥100 USD $4.613997
≥500 USD $4.352821
≥1000 USD $4.106429
Inventory: 9458
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 7.62mm
Body Height 6.9mm
Width 6.91mm
Length 12.8mm

Technical

Contact (DC) Max Rating R Load .02A@20VDC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02A
Bushing Thread Unthreaded
Illumination Type Illuminated, Non-Illuminated
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 30,000 Cycles
Sealing EPOXY TERMINAL SEALED; IP67
Contact Current(DC)-Max 0.02A
Switch Function On-On
Circuit SPDT
Actuator Type Standard Round
Body Breadth 12.7 mm
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 400mA
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series 100A
Published 2002
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

Actuator Material Brass, Chrome Plated
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold

Supply Chain

Factory Lead Time 9 Weeks
