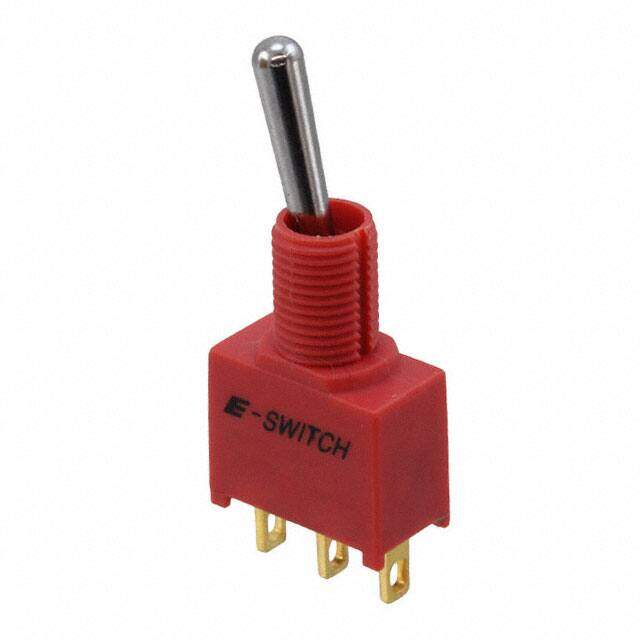

100AWSP1T1B1M1RE image
Favorite
100AWSP1T1B1M1RE image
Favorite

100AWSP1T1B1M1RE

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $6.44
Unit Price: USD $6.435836
≥1 USD $6.435836
≥200 USD $2.568032
≥500 USD $2.482694
≥1000 USD $2.440681
Inventory: 4211
Minimum: 1
-
+

Technical Details

Compliance

Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 10.41mm
Length - Termination 0.156 inch
Body Height 10.414mm

Technical

Bushing Type M10X1.5
Contact (DC) Max Power Rating R Load 0.4VA@20VDC
PCB Hole Count 3
Bushing Thread 1/4-40
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 30,000 Cycles
Dielectric Withstanding Voltage 1400VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 20V
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 100A
Published 2008
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

End Contact Plating GOLD OVER NICKEL
End Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Center Contact Material COPPER ALLOY
Center Contact Plating GOLD OVER NICKEL
Actuator Material Brass, Chrome Plated
Insulation Material POLYBUTYLENE TEREPHTHALATE
Mounting Type Panel Mount
Mount Panel

Supply Chain

Factory Lead Time 9 Weeks
