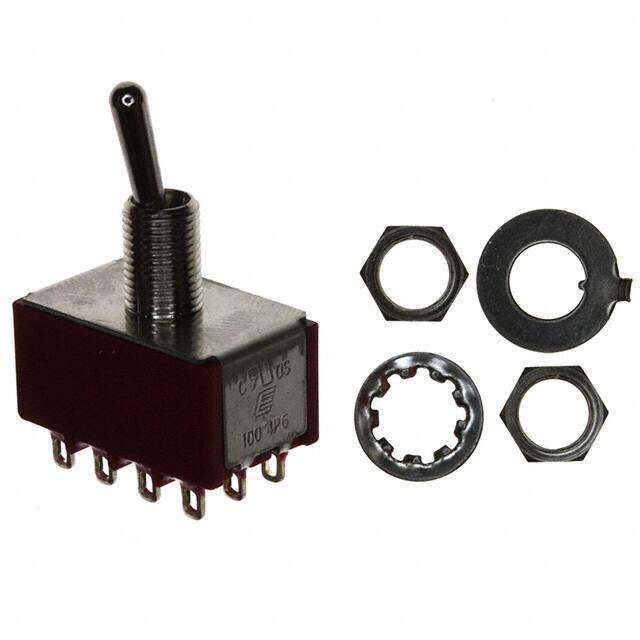

1004P6T1B1M1QEH
RoHS
/
Package /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DP3T 5A 120V
PDF
/
Inventory: 8545
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 10.41mm
Body Height 10.54mm
Width 21.6mm
Length 12.7mm
Technical
Contact (AC) Max Rating R Load 5A@120VAC
Contact Current(AC)-Max 5A
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Throw Configuration 4PDT
Electrical Life 40,000 Cycles
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 5A
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-On-On
Circuit DP3T
Actuator Type Standard Round
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Orientation Vertical
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Jumper needed to achieve triple throw
JESD-609 Code e4
Series 100
Published 2008
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Mounting Type Panel Mount
Mount Panel
Contact Plating Silver
