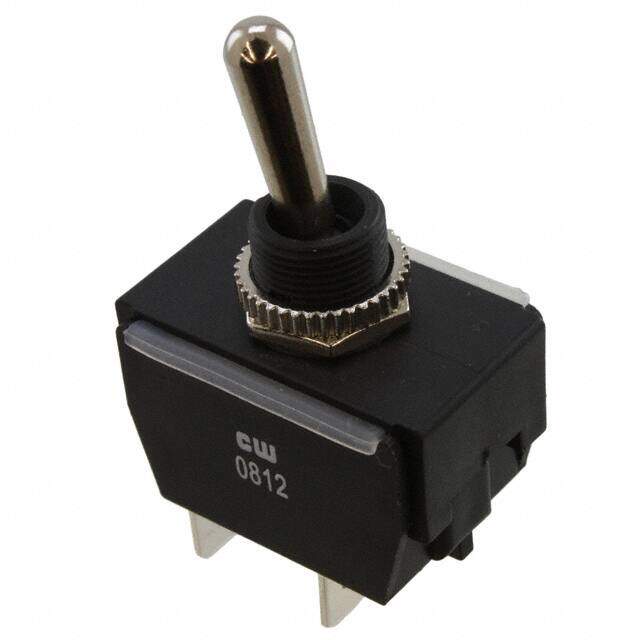

GTS448F101AHR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPST 16A 250V
PDF
/
Buying Options
Total Price: USD $3.35
Unit Price: USD $3.345221
≥1 USD $3.345221
≥10 USD $3.155865
≥100 USD $2.977235
≥500 USD $2.80871
≥1000 USD $2.649726
Inventory: 1189
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP56, Water Resistant
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 17.50mm
Length - Termination 0.413 inch
Body Height 20.2946mm
Technical
Life (Cycles) 10000 cycles
Bushing Length 0.406 inch
Contact (AC) Max Rating R Load 16A@250VAC
Bushing Thread 15/32-32
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 10,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Insulation Resistance 100000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 12.20mm Dia
Switch Function On-Off
Circuit DPST
Actuator Type Standard Round
Body Breadth 21.4884 mm
Body Length or Diameter 34.0106mm
Voltage - Rated AC 250V
Termination Style Quick Connect - 0.250 (6.3mm)
Current Rating 16A
Ingress Protection IP56 - Dust Protected, Water Resistant
Current Rating (Amps) 16A AC
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series GTS448
Published 2013
Packaging Bulk
Operating Temperature 0°C~85°C
Physical
Terminal Material COPPER ALLOY
Housing Material NYLON
Mounting Type Panel Mount
Mount Bushing, Panel
Supply Chain
Factory Lead Time 14 Weeks
