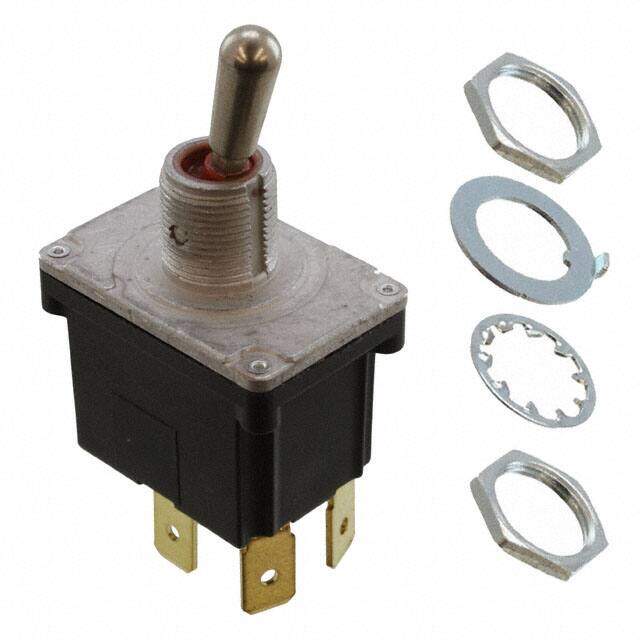

GTB-4B12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPST 12A 125V
PDF
/
Buying Options
Total Price: USD $25.51
Unit Price: USD $25.513586
≥1 USD $25.513586
≥200 USD $10.180227
≥500 USD $9.840186
≥1000 USD $9.672134
Inventory: 3885
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Bushing, Panel
Mounting Type Panel Mount
Actuator Material Brass, Nickel Plated
Technical
Packaging Bulk
Published 2012
Series GTB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Voltage - Rated DC 500V
Current Rating (Amps) 12A AC
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 12A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Body Length or Diameter 33.5026mm
Body Breadth 22.4028 mm
Actuator Type Standard Round
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.00mm Dia
Contact Resistance 0.02mOhm
Insulation Resistance 100000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 30,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread 15/32-32
Contact (AC) Max Rating R Load 12A@250VAC
Contact Voltage(AC)-Max 250V
Contact Function OFF-ON
Bushing Length 0.48 inch
Life (Cycles) 30000 cycles
Contact (AC) Max Power Rating R Load 1HP@250VAC
Dimensions
Body Height 24.9936mm
Length - Termination 0.425 inch
Actuator Length 16.20mm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP68, Waterproof
