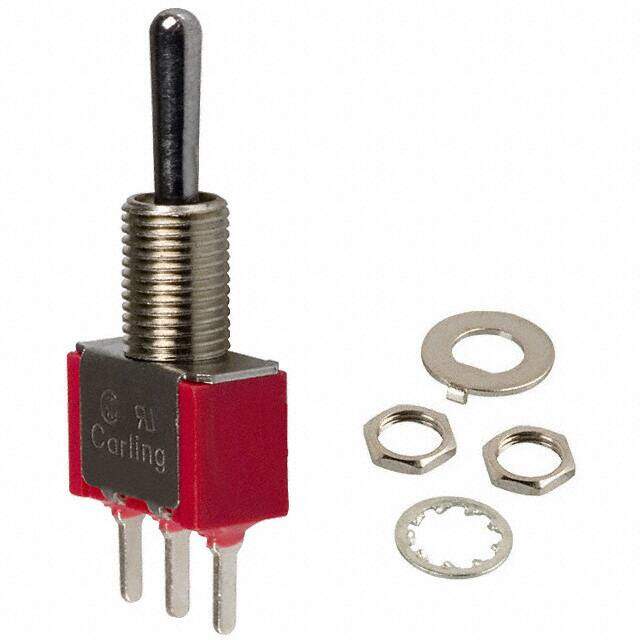

2M1-SP3-T1-B1-M2QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $5.83
Unit Price: USD $5.8344
≥1 USD $5.8344
≥10 USD $5.25272
≥100 USD $4.989248
≥500 USD $4.777872
≥1000 USD $4.61956
≥3000 USD $4.381978
Inventory: 98
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Stainless Steel
Actuator Material Brass, Chrome Plated
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2005
Series 2M
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Number of Positions 3
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Straight
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Standard Round
Circuit SPDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Contact Current(DC)-Max 5A
Sealing EPOXY TERMINAL SEALED; IP67
Max Voltage Rating (AC) 250V
Electrical Life 50,000 Cycles
Number of Poles 1
Throw Configuration SPDT, SPST
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Switch Type TOGGLE SWITCH
Contact Current Rating 5A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Contact Current(AC)-Max 5A
Hole Diameter 6.35 mm
Contact (DC) Max Rating R Load 5A@28VDC
PCB Hole Count 3
Solderability MIL-STD
Dimensions
Length 12.7mm
Width 6.6mm
Body Height 8.8mm
Actuator Length 10.40mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
