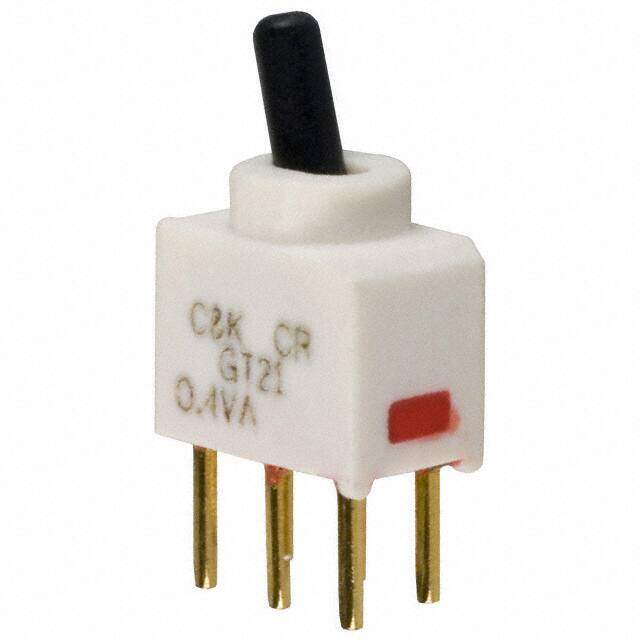

GT21MCBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $9.85
Unit Price: USD $9.8472
≥1 USD $9.8472
≥10 USD $8.8748
≥100 USD $8.503264
≥500 USD $8.08522
≥1000 USD $7.759893
≥3000 USD $7.295226
Inventory: 393
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Contact Plating Gold
Mount PC Mount, PCB, Through Hole
Mounting Type Through Hole
Material Glass, Nylon
Housing Material Nylon
Actuator Material Polyamide (PA), Nylon, Glass Filled
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2006
Series GT
Feature Sealed
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Depth 4.5mm
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Contact Resistance 50mOhm
Insulation Resistance 1GOhm
Max Voltage Rating (AC) 20V
Electrical Life 40,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 20V
Mechanical Life 40000 cycles
Bushing Thread Unthreaded
Dimensions
Length 7.01mm
Width 4.5mm
Actuator Length 3.81mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
