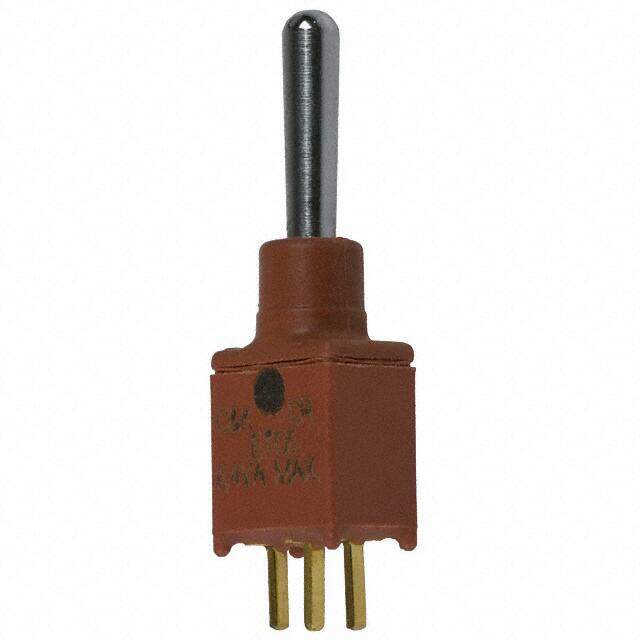

ET05SD1CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $6.76
Unit Price: USD $6.7584
≥1 USD $6.7584
≥10 USD $6.09224
≥100 USD $5.836864
≥500 USD $5.615456
Inventory: 55
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Plating Gold
Mount PC Mount, Through Hole
Mounting Type Through Hole
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2010
Series ET
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Straight
Ingress Protection IP57 - Dust Protected, Waterproof
Depth 5.08mm
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Standard Round
Circuit SPDT
Switch Function Mom-Off-Mom
Max Voltage Rating (AC) 20V
Electrical Life 30,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 20V
Illumination Type Illuminated, Non-Illuminated
Bushing Thread Unthreaded
Dimensions
Length 8.13mm
Actuator Length 10.16mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP57, Waterproof
