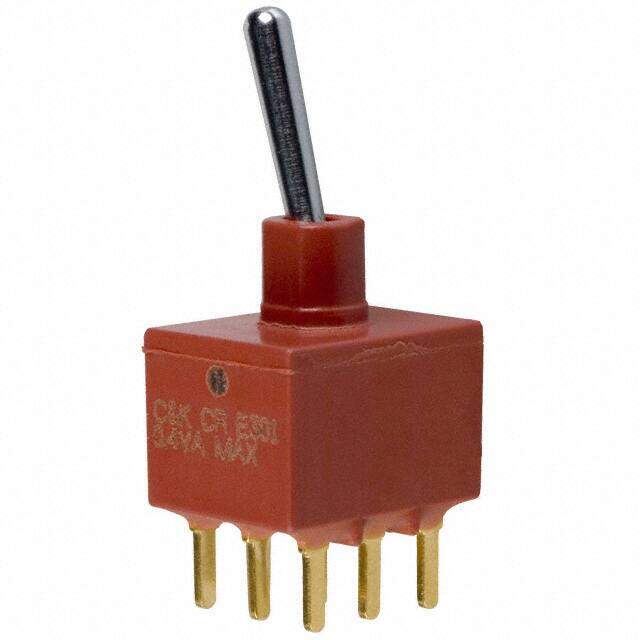

E301SD1CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None ON 3PDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount Bulk
PDF
/
Buying Options
Total Price: USD $19.47
Unit Price: USD $19.4656
≥1 USD $19.4656
≥10 USD $17.67656
≥100 USD $16.88192
≥500 USD $15.98828
≥1000 USD $15.392414
≥3000 USD $14.399334
Inventory: 305
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP57, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 12.70mm
Length 12.7mm
Technical
Bushing Thread Unthreaded
Max Voltage Rating (DC) 20V
Illumination Non-Illuminated
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Switch Function On-On
Circuit 3PDT
Actuator Type Standard Round
Voltage - Rated AC 20V
Termination Style PC Pin
Current Rating 5A
Depth 16.31mm
Ingress Protection IP57 - Dust Protected, Waterproof
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series E
Published 2009
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Mounting Type Through Hole
Mount PC Mount, Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 16 Weeks
