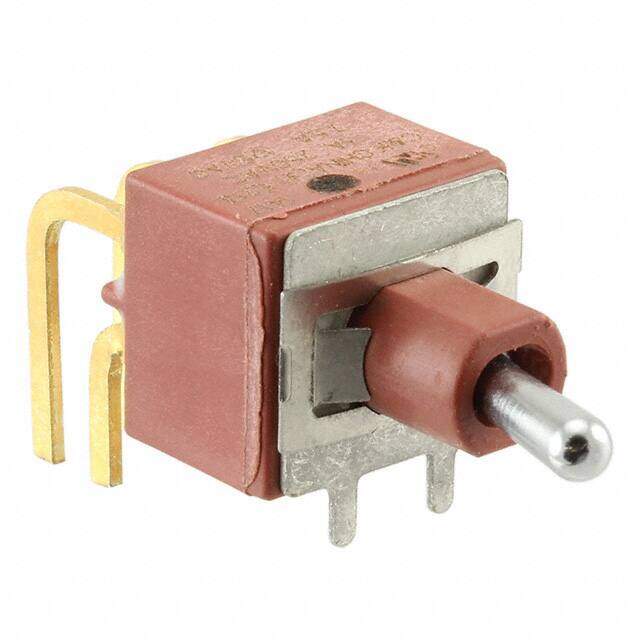

E213MD9AGE image
Favorite
E213MD9AGE image
Favorite

E213MD9AGE

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Toggle Switches
Description SWITCH TOGGLE SP3T 7.5A 125V
PDF
/
Inventory: 6647
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Contact Material Silver
Contact Plating Gold
Mount Brackets, Through Hole
Mounting Type Through Hole, Right Angle
Actuator Material Brass, Chrome Plated

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2014
Series E
Feature Jumper needed to achieve triple throw
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Voltage - Rated DC 28V
Current Rating (Amps) 7.5A AC/DC
Orientation Right Angle
Ingress Protection IP57 - Dust Protected, Waterproof
Current Rating 7.5A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit SP3T
Switch Function On-On-Mom
Max Voltage Rating (AC) 250V
Electrical Life 40,000 Cycles
Throw Configuration DPDT
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Bushing Thread Unthreaded

Dimensions

Actuator Length 6.86mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Ratings IP57, Waterproof
