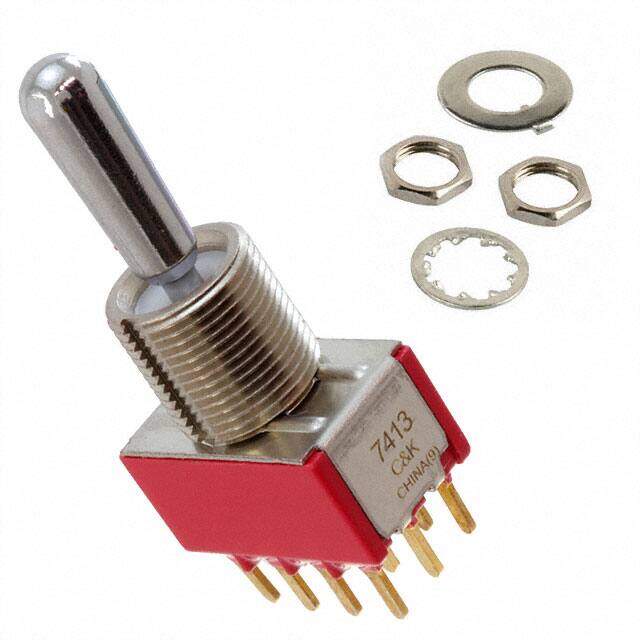

7413TCGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DP3T 5A 120V
PDF
/
Buying Options
Total Price: USD $40.54
Unit Price: USD $40.541575
≥1 USD $40.541575
≥10 USD $38.24677
≥100 USD $36.081854
≥500 USD $34.03949
≥1000 USD $32.112723
Inventory: 980
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 17.45mm
Length 12.7mm
Technical
Bushing Thread 15/32-32
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Throw Configuration 4P, 4PDT, DP3T
Electrical Life 40,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 11.91mm Dia
Switch Function On-On-Mom
Circuit DP3T
Actuator Type Standard Round
Voltage - Rated AC 120V
Termination Style PC Pin
Current Rating 5A
Depth 21.59mm
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Jumper needed to achieve triple throw
Series 7000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold, Silver
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
