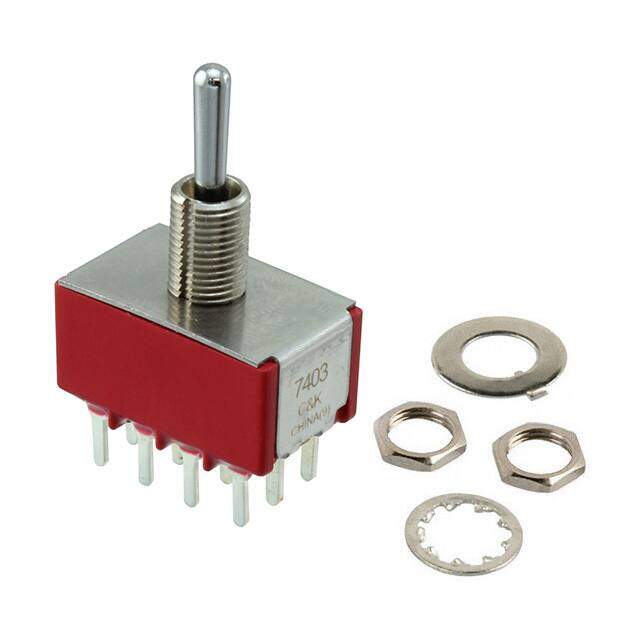

7403SYCQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE 4PDT 5A 120V
PDF
/
Buying Options
Total Price: USD $25.94
Unit Price: USD $25.9424
≥1 USD $25.9424
≥10 USD $23.55672
≥100 USD $22.49808
≥500 USD $21.307088
≥1000 USD $20.513064
≥3000 USD $19.189632
Inventory: 178
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Stainless Steel
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series 7000
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Straight
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Standard Round
Circuit 4PDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Max Voltage Rating (AC) 250V
Electrical Life 40,000 Cycles
Throw Configuration 4P, 4PDT
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Dimensions
Actuator Length 10.67mm
Compliance
RoHS Status ROHS3 Compliant
