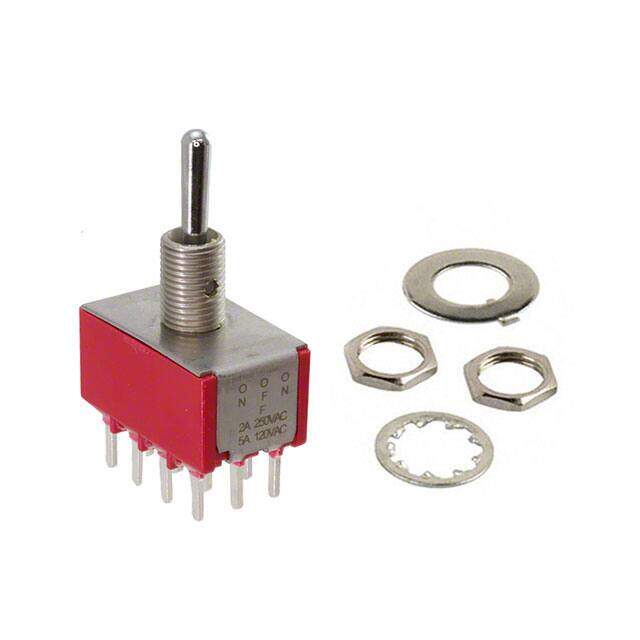

7403SPYCQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE 4PDT 5A 120V
PDF
/
Inventory: 7983
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold, Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Stainless Steel
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series 7000
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Depth 21.59mm
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Anti-Rotation
Circuit 4PDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 40,000 Cycles
Throw Configuration 4P, 4PDT
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Dimensions
Length 12.7mm
Actuator Length 10.67mm
Compliance
RoHS Status ROHS3 Compliant
