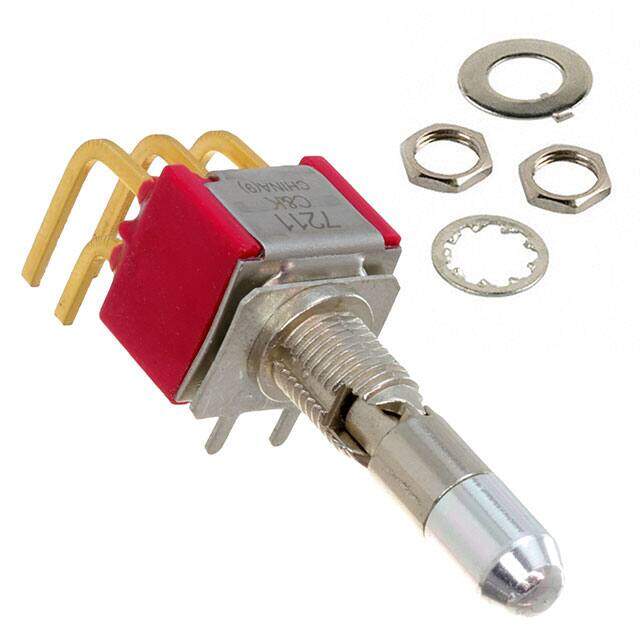

7211K2ABE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SP3T 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $34.34
Unit Price: USD $34.337587
≥1 USD $34.337587
Inventory: 6874
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Gold
Mount Brackets, Panel
Mounting Type Panel Mount, Right Angle
Housing Material Stainless Steel
Actuator Material Aluminum
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series 7000
Feature Jumper needed to achieve triple throw
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Termination Style PC Pin
Voltage - Rated AC 20V
Actuator Type Locking Lever
Circuit SP3T
Switch Function On-On-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Max Voltage Rating (AC) 20V
Electrical Life 40,000 Cycles
Throw Configuration DP, DPDT, SP3T
Illumination Non-Illuminated
Max Voltage Rating (DC) 20V
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Dimensions
Actuator Length 17.88mm
Compliance
RoHS Status ROHS3 Compliant
