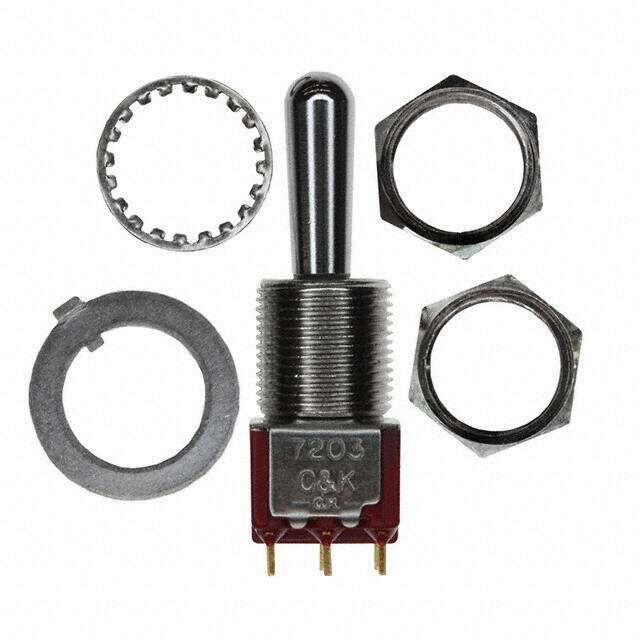

7203TCWZGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $19.38
Unit Price: USD $19.3776
≥1 USD $19.3776
≥10 USD $17.59736
≥100 USD $16.80624
≥500 USD $15.91656
≥1000 USD $15.323528
≥3000 USD $14.334874
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Contact Plating Gold, Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Stainless Steel
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2012
Series 7000
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 11.81mm
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 11.91mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 40,000 Cycles
Throw Configuration DP, DPDT
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 15/32-32
Dimensions
Length 12.7mm
Actuator Length 17.45mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
