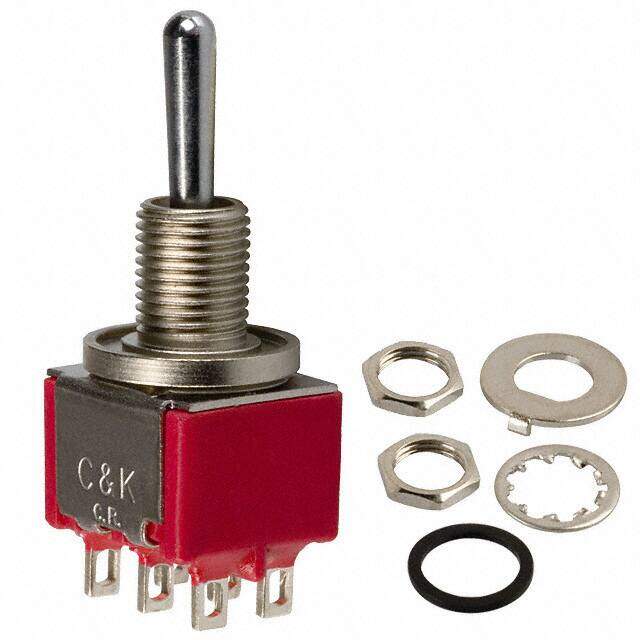

7203SCWZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $10.74
Unit Price: USD $10.7448
≥1 USD $10.7448
≥10 USD $9.6316
≥100 USD $9.317088
Inventory: 202
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.67mm
Length 12.7mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Throw Configuration DP, DPDT
Electrical Life 40,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Off-On
Circuit DPDT
Actuator Type Standard Round
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Depth 11.81mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
