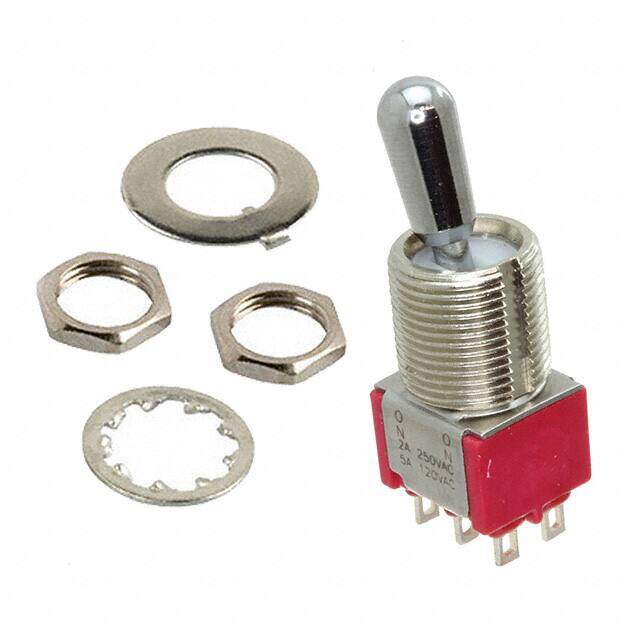

7201T1CWZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $16.76
Unit Price: USD $16.764
≥1 USD $16.764
≥10 USD $15.22752
≥100 USD $14.54288
≥500 USD $13.7731
≥1000 USD $13.259752
≥3000 USD $12.404304
Inventory: 49
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 12.37mm
Technical
Bushing Thread 15/32-32
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Throw Configuration DP, DPDT
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 11.91mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Standard Round
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2016
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
