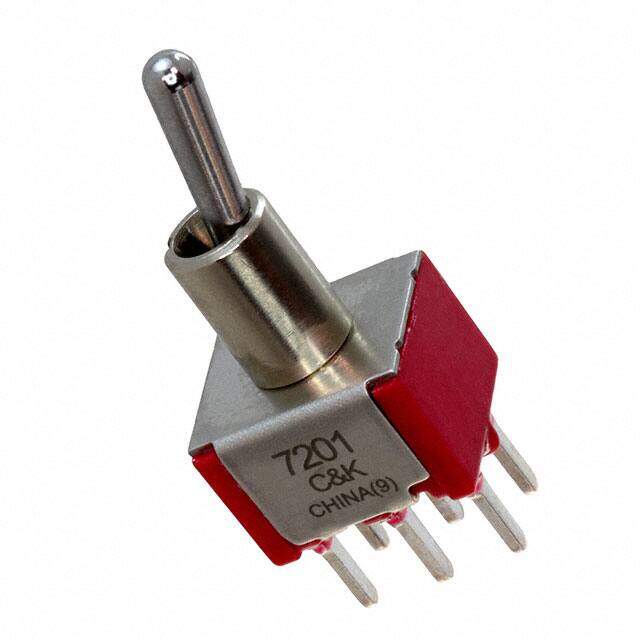

7201SY9CQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $19.36
Unit Price: USD $19.362649
≥1 USD $19.362649
Inventory: 5267
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Silver
Mount PC Mount, Through Hole
Mounting Type Through Hole
Housing Material Stainless Steel
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series 7000
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Depth 11.43mm
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 100,000 Cycles
Throw Configuration DP, DPDT
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Type Illuminated, Non-Illuminated
Bushing Thread Unthreaded
Dimensions
Length 12.7mm
Actuator Length 10.67mm
Compliance
RoHS Status ROHS3 Compliant
