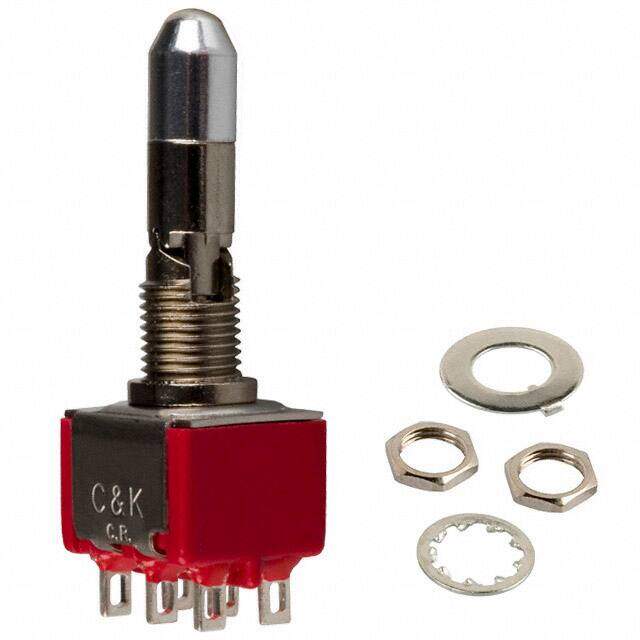

7201K2ZGE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None ON DPDT Locking Lever Solder Lug 5A 250VAC 28VDC 0.4VA Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $16.89
Unit Price: USD $16.8872
≥1 USD $16.8872
≥10 USD $15.33928
≥100 USD $14.65024
≥500 USD $13.87474
≥1000 USD $13.357608
≥3000 USD $12.495824
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 17.88mm
Length 12.7mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Throw Configuration DP, DPDT
Electrical Life 100,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Locking Lever
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Depth 11.43mm
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2012
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Aluminum
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Plating Gold, Silver
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
