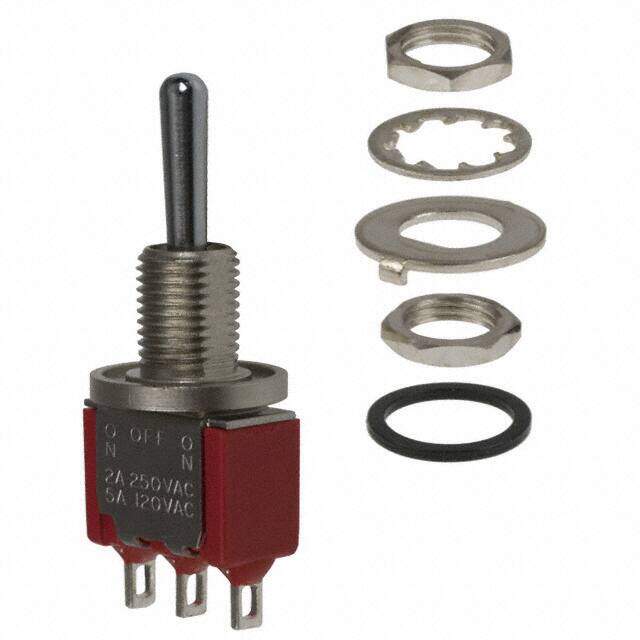

7105SCWZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $10.51
Unit Price: USD $10.5072
≥1 USD $10.5072
≥10 USD $9.48992
≥100 USD $9.033728
≥500 USD $8.576832
≥1000 USD $8.272352
≥3000 USD $7.76483
Inventory: 244
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.67mm
Length 12.7mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 5A
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Throw Configuration SP, SPDT
Electrical Life 40,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Depth 11.81mm
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
