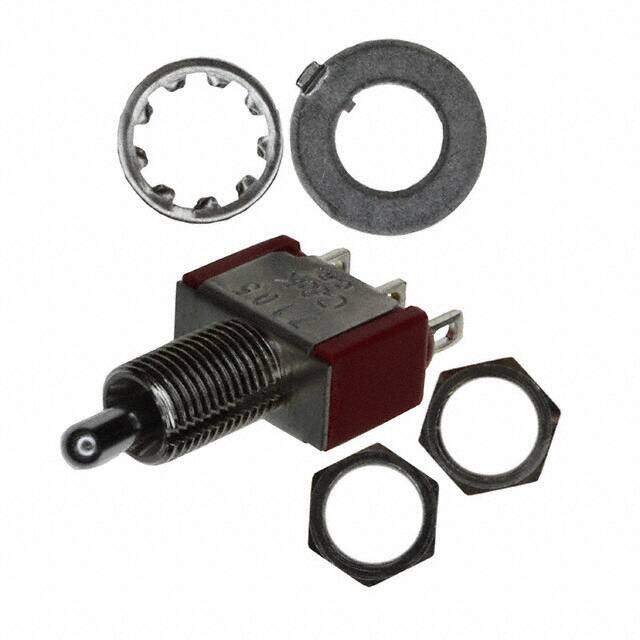

7105MYZQE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $15.68
Unit Price: USD $15.681278
≥1 USD $15.681278
Inventory: 2600
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 5.08mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2012
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
