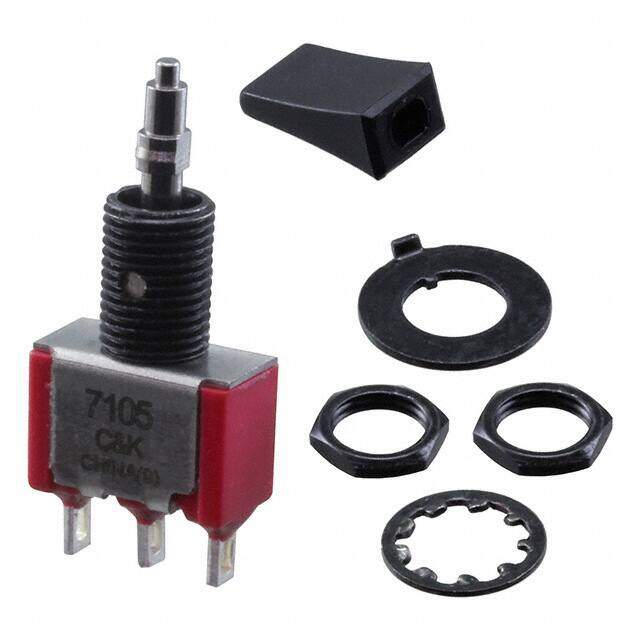

7105L41YZQE22
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle Mom OFF Mom SPDT Lever Solder Lug 5A 250VAC 28VDC Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $8.09
Unit Price: USD $8.0872
≥1 USD $8.0872
≥10 USD $7.30312
≥100 USD $6.8761
Inventory: 107
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 13.49mm
Length 12.7mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Throw Configuration SP, SPDT
Electrical Life 40,000 Cycles
Max Current Rating 5A
Max Voltage Rating (AC) 250V
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Flat Anti-Rotation
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 5A
Depth 6.86mm
Orientation Straight
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 28V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Black Actuator
Series 7000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Thermoplastic
Housing Material Stainless Steel
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 14 Weeks
