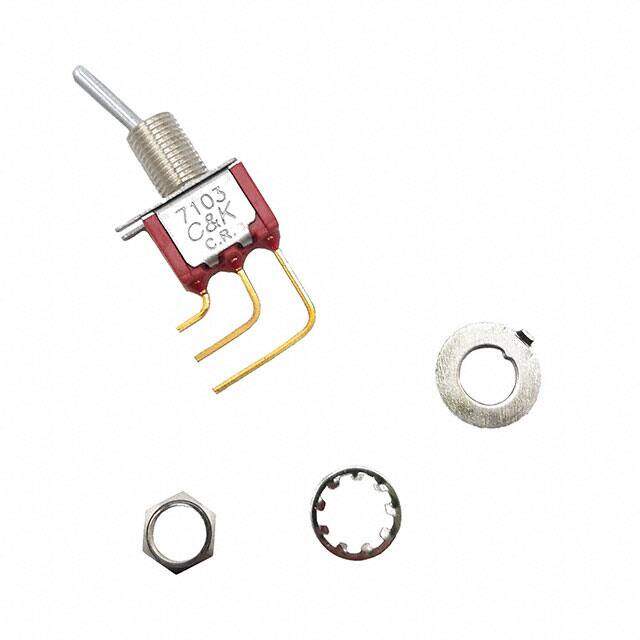

7103SYAV2BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON OFF ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket and Threads
PDF
/
Buying Options
Total Price: USD $10.09
Unit Price: USD $10.0936
≥1 USD $10.0936
≥10 USD $9.09392
≥100 USD $8.28476
≥500 USD $7.951354
≥1000 USD $7.475257
≥3000 USD $6.90389
Inventory: 128
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.67mm
Length 6.86mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 20V
Illumination Non-Illuminated
Throw Configuration SP, SPDT
Electrical Life 40,000 Cycles
Max Voltage Rating (AC) 20V
Panel Cutout Dimensions Circular - 6.35mm Dia
Switch Function On-Off-On
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 40.26mm
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Panel Mount, Right Angle, Vertical
Mount Brackets, Panel, Vertical
Contact Material Gold
Supply Chain
Factory Lead Time 14 Weeks
