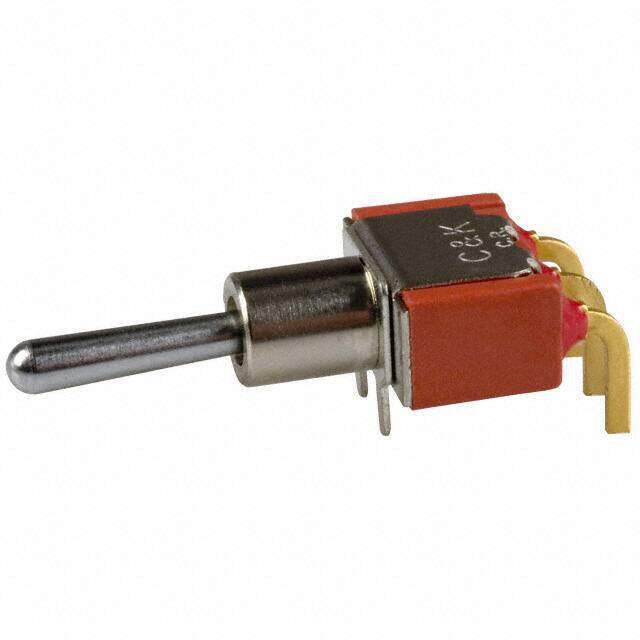

7101SD9ABE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None ON SPDT Round Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
PDF
/
Buying Options
Total Price: USD $5.79
Unit Price: USD $5.789889
≥1 USD $5.789889
≥200 USD $2.24112
≥500 USD $2.162346
≥1000 USD $2.122959
Inventory: 1415
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Actuator Length 12.45mm
Length 12.7mm
Technical
Bushing Thread Unthreaded
Illumination Type Illuminated, Non-Illuminated
Max Voltage Rating (DC) 20V
Illumination Non-Illuminated
Throw Configuration SP, SPDT
Electrical Life 100,000 Cycles
Max Voltage Rating (AC) 20V
Switch Function On-On
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 32.9mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 7000
Published 2011
Packaging Tray
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Through Hole, Right Angle
Mount Brackets, Through Hole
Contact Material Gold
Supply Chain
Factory Lead Time 14 Weeks
