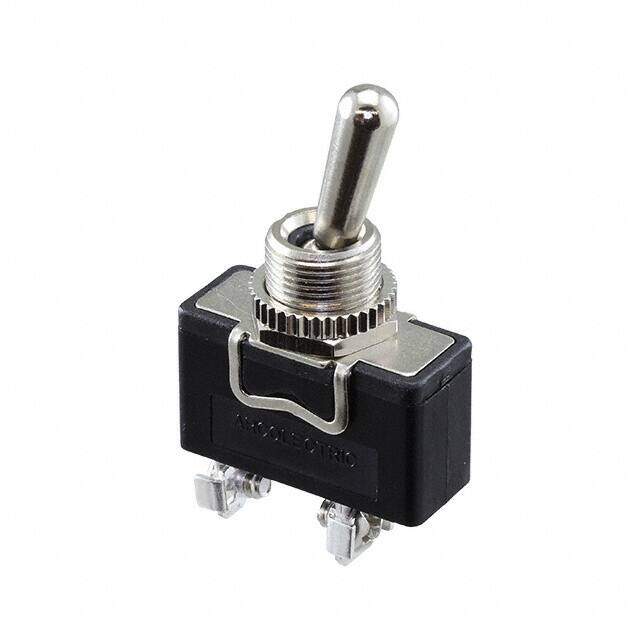

S3900BA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPST 20A 125V
PDF
/
Buying Options
Total Price: USD $6.67
Unit Price: USD $6.6704
≥1 USD $6.6704
≥10 USD $5.99632
≥100 USD $5.72
≥500 USD $5.473952
≥1000 USD $5.258704
≥3000 USD $4.981891
Inventory: 484
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 17.50mm
Technical
Contact Voltage(AC)-Max 277V
Contact (AC) Max Rating R Load 20A@277VAC
Contact Current(AC)-Max 20A
Bushing Thread 15/32-32
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Contact Voltage(DC)-Max 36V
Contact Current(DC)-Max 14A
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Standard Round
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating (Amps) 20A AC 14A DC
Voltage - Rated DC 36V
HTS Code 8536.50.90.65
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 3900
Published 2016
Packaging Bulk
Physical
Surface Mount NO
Mounting Type Panel Mount
Supply Chain
Factory Lead Time 24 Weeks
