641NH/2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

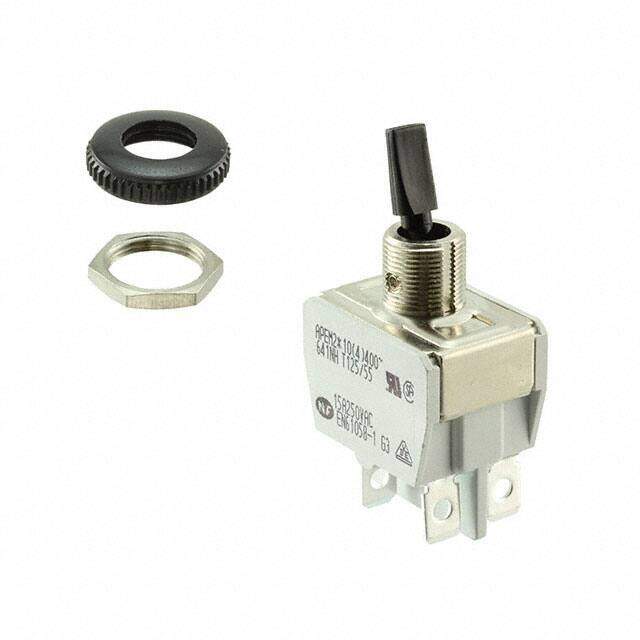

APEM 641NH/2Toggle Switch, 600NH Series, Non Illuminated, DPST, Off-On, Panel, 15 A
PDF
/
Buying Options
Total Price: USD $10.12
Unit Price: USD $10.12
≥1 USD $10.12
≥10 USD $9.07456
≥100 USD $8.778176
Inventory: 464
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Number of Pins 2
Actuator Material Polyamide (PA), Nylon
Technical
Operating Temperature -20°C~55°C
Packaging Bulk
Series 600NH
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Additional Feature O.F. = 1.5 NM
HTS Code 8536.50.90.65
Voltage - Rated DC 24V
Current Rating (Amps) 15A AC
Orientation Straight
Current Rating 15A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Flatted
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.20mm Dia
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Electrical Life 10,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 24V
Switch Type TOGGLE SWITCH
Contact Current Rating 15A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 0.75
Switching Current 15A
Dimensions
Height 21.5mm
Actuator Length 13.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
