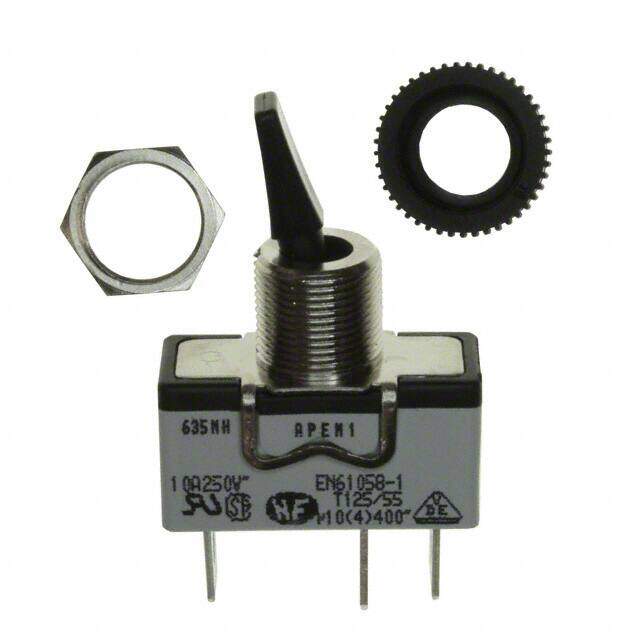

635NH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 10A 125V
PDF
/
Inventory: 6811
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 13.50mm
Body Height 15mm
Technical
Contact (DC) Max Rating R Load 5A@25VDC
Contact (AC) Max Rating R Load 15A@125VAC
Contact Current(AC)-Max 15A
Bushing Thread M12 x 0.75
Illumination Type Illuminated, Non-Illuminated
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 10,000 Cycles
Contact Current(DC)-Max 5A
Panel Cutout Dimensions Circular - 12.20mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Flatted
Body Breadth 14 mm
Body Length or Diameter 29.5mm
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 10A
Current Rating (Amps) 10A AC
HTS Code 8536.50.90.40
Additional Feature O.F. = 1.5 NM
Terminal Finish Silver (Ag)
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 600NH
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Actuator Material Polyamide (PA), Nylon
Mounting Type Panel Mount
Mount Panel
Supply Chain
Factory Lead Time 9 Weeks
