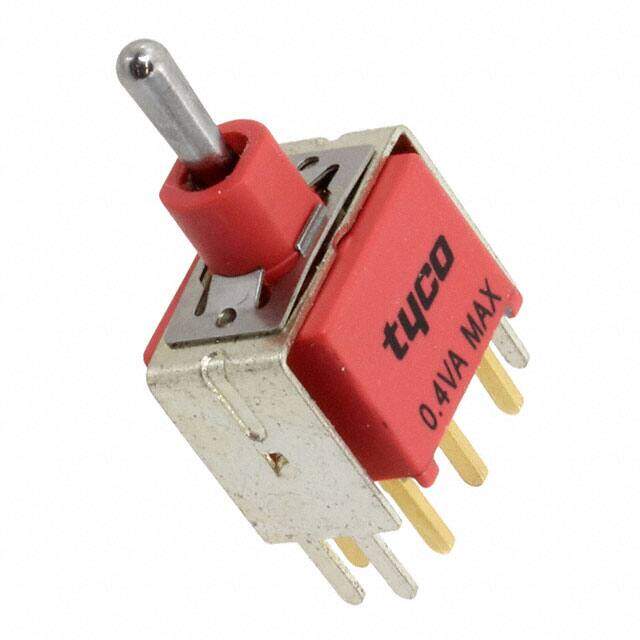

5236WWCDB16
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Standard Round 5000 Through Hole Right Angle Vertical Bulk Toggle Switch 8.50mm 0.02A 20V .02A@20VAC
PDF
/
Inventory: 3167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Actuator Material Brass, Nickel Plated
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Series 5000
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Terminal Finish Gold (Au)
HTS Code 8536.50.90.65
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 11mm
Body Breadth 7 mm
Actuator Type Standard Round
Circuit SPDT
Switch Function On-On
Contact Current(DC)-Max 0.02A
Sealing EPOXY TERMINAL SEALED
Electrical Life 50,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread Unthreaded
Contact Current(AC)-Max 0.02A
Contact (AC) Max Rating R Load .02A@20VAC
Contact (DC) Max Rating R Load .02A@20VDC
Dimensions
Body Height 13.2mm
Actuator Length 8.50mm
Compliance
RoHS Status ROHS3 Compliant
