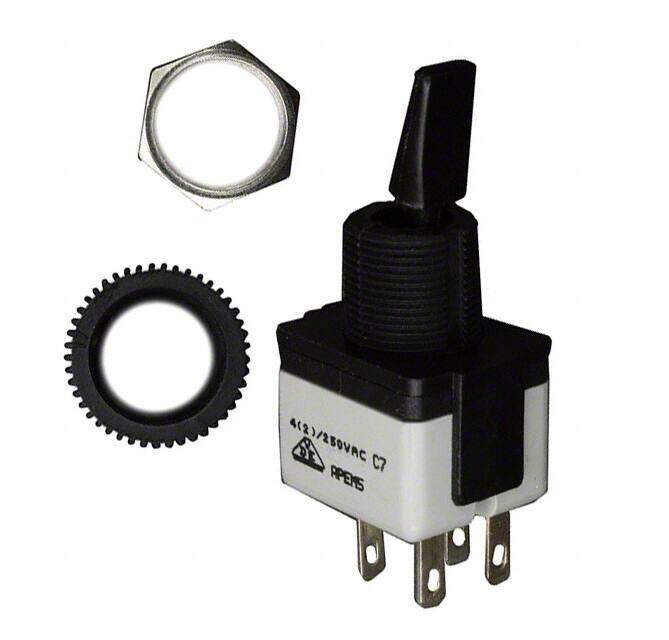

4641A22UU
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPST 6A 125V
PDF
/
Buying Options
Total Price: USD $12.05
Unit Price: USD $12.0472
≥1 USD $12.0472
≥10 USD $10.88648
≥100 USD $9.83862
≥500 USD $9.489304
≥1000 USD $8.907122
≥3000 USD $8.150296
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 13.50mm
Body Height 15mm
Technical
Contact (AC) Max Rating R Load 6A@125VAC
Contact Current(AC)-Max 6A
Bushing Thread M12 x 0.75
Contact Current Rating 6A
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 10,000 Cycles
Max Voltage Rating (AC) 250V
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 12.20mm Dia
Switch Function On-Off
Circuit DPST
Actuator Type Flatted
Body Breadth 16.5 mm
Body Length or Diameter 21mm
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 6A
Orientation Straight
Current Rating (Amps) 6A AC
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 4600
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Actuator Material Polyamide (PA66), Nylon 6/6
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 13 Weeks
