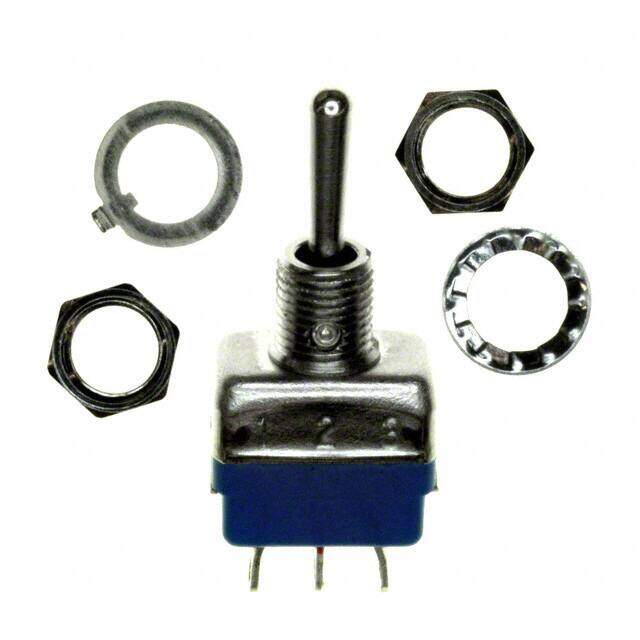

11138A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 4A 125V
PDF
/
Inventory: 2425
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 11.30mm
Body Height 13.4mm
Technical
Contact (AC) Max Rating R Load 4A@125VAC
Contact Current(AC)-Max 4A
Bushing Thread 1/4-40
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Throw Configuration SP3T, SPDT
Electrical Life 50,000 Cycles
Sealing EPOXY TERMINAL SEALED
Contact Current(DC)-Max 4A
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Off-Mom
Circuit SPDT
Actuator Type Standard Round
Body Breadth 8 mm
Body Length or Diameter 14mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 4A
Orientation Vertical
Current Rating (Amps) 4A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 11000
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Mounting Type Panel Mount
Mount Bushing, Panel
Supply Chain
Factory Lead Time 9 Weeks
