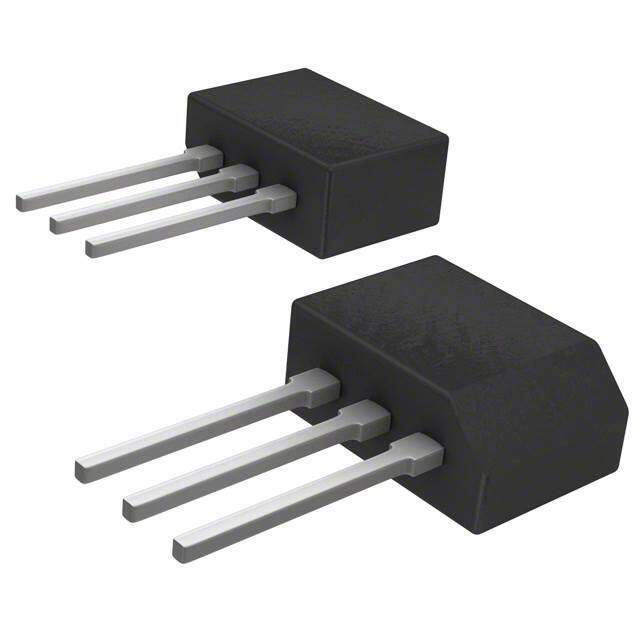

Z0410MF 1AA2
RoHS
RoHS compliant
RoHS compliantPackage TO-202 No Tab
Category Discrete Semiconductor Products / Thyristors - TRIACs
Description
TRIAC 600V 4A TO202
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.014
≥1 USD $2.014
≥10 USD $1.653
≥100 USD $1.60075
≥500 USD $1.54945
≥1000 USD $1.49815
Inventory: 258
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-202 No Tab
Surface Mount NO
Technical
Operating Temperature -40°C~125°C TJ
Packaging Tube
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature SENSITIVE GATE
HTS Code 8541.30.00.80
Subcategory TRIACs
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number Z0410
Pin Count 3
JESD-30 Code R-PSIP-T3
Qualification Status Not Qualified
Number of Elements 1
Configuration Single
Trigger Device Type 4 QUADRANT LOGIC LEVEL TRIAC
Voltage - Off State 600V
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Current - Non Rep. Surge 50, 60Hz (Itsm) 20A 21A
Current - Gate Trigger (Igt) (Max) 25mA
Current - On State (It (RMS)) (Max) 4A
Repetitive Peak Off-state Voltage 600V
Leakage Current (Max) 0.5mA
Critical Rate of Rise of Off-State Voltage-Min 200V/us
Triac Type Standard
Holding Current-Max 25mA
Critical Rate of Rise of Commutation Voltage-Min 5V/us
Compliance
RoHS Status ROHS3 Compliant
