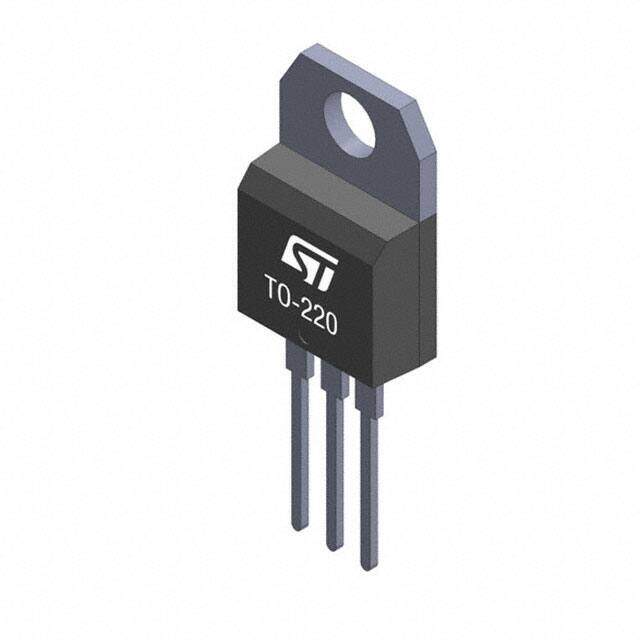

TN3015H-6T image
Favorite
TN3015H-6T image
Favorite

TN3015H-6T

STMicroelectronics
RoHS
RoHS RoHS compliant
Package TO-220-3
Category Discrete Semiconductor Products / Thyristors - SCRs
Description HIGH TEMPERATURE 30A SCRS
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.00232
≥100 USD $0.77924
≥500 USD $0.66051
≥1000 USD $0.538058
≥3000 USD $0.506519
Inventory: 762
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Technical

Current - Off State (Max) 10μA
Voltage - On State (Vtm) (Max) 1.6V
SCR Type Standard Recovery
Current - On State (It (AV)) (Max) 19A
Current - On State (It (RMS)) (Max) 30A
Current - Hold (Ih) (Max) 60mA
Current - Gate Trigger (Igt) (Max) 15mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 270A 295A
Voltage - Gate Trigger (Vgt) (Max) 1.3V
Voltage - Off State 600mV
Trigger Device Type SCR
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series ECOPACK?2
Operating Temperature -40°C~150°C TJ

Physical

Package / Case TO-220-3
Mounting Type Through Hole

Supply Chain

Factory Lead Time 11 Weeks
