CD631615B
RoHS
RoHS compliant
RoHS compliantPackage POW-R-BLOK? Module
Category Discrete Semiconductor Products / Thyristors - SCRs - Modules
Description

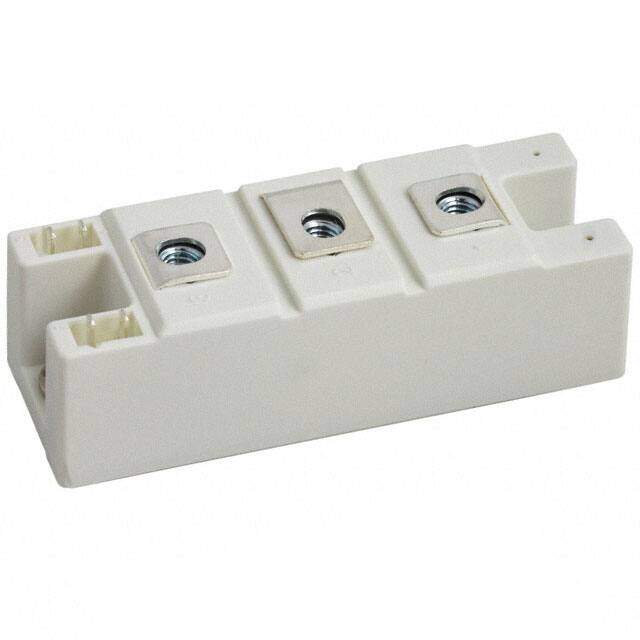

POWEREX CD631615B THYRISTOR MODULE 150A 1.6KV POW-R-BLOK
PDF
/
Inventory: 3934
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Desc. of Screw Terminals A-K-AK
Number of SCRs, Diodes 2 SCRs
Repetitive Peak Reverse Voltage 1600V
Non-Repetitive Pk On-state Cur 5100 A
Current - On State (It (AV)) (Max) 160A
Repetitive Peak Off-state Voltage 1600V
Structure Series Connection - All SCRs
Current - On State (It (RMS)) (Max) 235A
On-State Current-Max 150000A
Current - Non Rep. Surge 50, 60Hz (Itsm) 5000A 5250A
Voltage - Gate Trigger (Vgt) (Max) 2V
Voltage - Off State 1.6kV
Trigger Device Type SCR
Hold Current 150mA
RMS Current (Irms) 235A
Case Connection ISOLATED
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Number of Elements 2
Qualification Status Not Qualified
Pin Count 7
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UPPER
Subcategory Silicon Controlled Rectifiers
HTS Code 8541.30.00.80
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2009
Packaging Bulk
Operating Temperature -40°C~125°C TJ
Desc. of Quick-Connects 2G-K-AK
Physical
Number of Pins 7
Package / Case POW-R-BLOK? Module
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 16 Weeks
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Alternative Model
