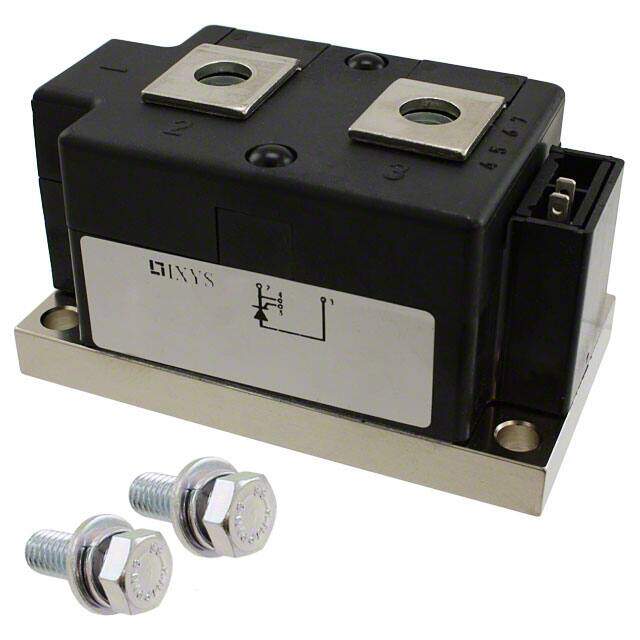

MCO500-16IO1
RoHS
RoHS compliant
RoHS compliantPackage Y1-CU
Category Discrete Semiconductor Products / Thyristors - SCRs - Modules
Description
MOD THYRISTOR SGL 1600V Y1-CU
PDF
/
Buying Options
Total Price: USD $61.71
Unit Price: USD $61.70987
≥1 USD $61.70987
≥10 USD $58.21686
≥100 USD $54.92157
≥500 USD $51.8128
≥1000 USD $48.88
≥3000 USD $46.11321
Inventory: 9516
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case Y1-CU
Number of Pins 4
Technical
Operating Temperature -40°C~140°C TJ
Packaging Bulk
Published 2012
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Additional Feature UL RECOGNIZED
Subcategory Silicon Controlled Rectifiers
Terminal Position UPPER
Terminal Form UNSPECIFIED
Base Part Number MC*500
Number of Elements 1
Case Connection ISOLATED
RMS Current (Irms) 880A
Reverse Voltage 1.6kV
Hold Current 300mA
Trigger Device Type SCR
Voltage - Gate Trigger (Vgt) (Max) 2V
Current - Non Rep. Surge 50, 60Hz (Itsm) 17000A 16000A
On-State Current-Max 500000A
Current - On State (It (RMS)) (Max) 880A
Structure Single
Repetitive Peak Off-state Voltage 1600V
Leakage Current (Max) 80mA
Current - On State (It (AV)) (Max) 560A
Non-Repetitive Pk On-state Cur 150000 A
Critical Rate of Rise of Off-State Voltage-Min 1000V/us
Number of SCRs, Diodes 1 SCR
Desc. of Screw Terminals A-K
Desc. of Quick-Connects G-GR
Circuit Commutated Turn-off Time-Nom 250 μs
Repetitive Peak Off-state Leakage Current-Max 80000μA
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
