MCC56-18IO8B
RoHS
RoHS compliant
RoHS compliantPackage TO-240AA
Category Discrete Semiconductor Products / Thyristors - SCRs - Modules
Description

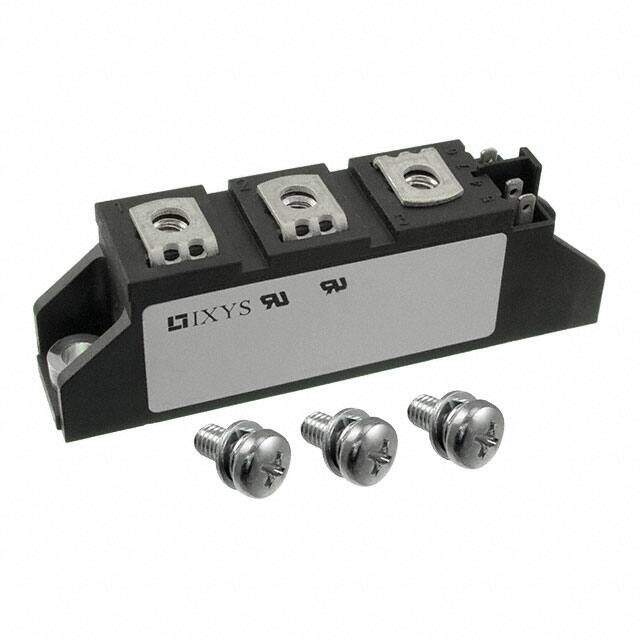

MOD THYRISTOR DUAL 1800V TO240AA
PDF
/
Buying Options
Total Price: USD $76.81
Unit Price: USD $76.808589
≥1 USD $76.808589
≥216 USD $30.647025
≥504 USD $29.622963
≥1008 USD $29.117496
Inventory: 5509
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Package / Case TO-240AA
Number of Pins 5
Technical
Operating Temperature -40°C~125°C TJ
Packaging Bulk
Published 2004
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 5
Additional Feature UL RECOGNIZED
Subcategory Silicon Controlled Rectifiers
Terminal Position UPPER
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number MC*56
Pin Count 5
Qualification Status Not Qualified
Number of Elements 2
Configuration SERIES CONNECTED, CENTER TAP, 2 ELEMENTS
Case Connection ISOLATED
RMS Current (Irms) 100A
Hold Current 200mA
Trigger Device Type SCR
Voltage - Off State 1.8kV
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - Non Rep. Surge 50, 60Hz (Itsm) 1500A 1600A
Current - Gate Trigger (Igt) (Max) 100mA
On-State Current-Max 60000A
Current - On State (It (RMS)) (Max) 100A
Structure Series Connection - All SCRs
Repetitive Peak Off-state Voltage 1800V
Current - On State (It (AV)) (Max) 64A
Non-Repetitive Pk On-state Cur 1600 A
Repetitive Peak Reverse Voltage 1800V
Number of SCRs, Diodes 2 SCRs
Desc. of Screw Terminals A-K-AK
Desc. of Quick-Connects 2G
Compliance
RoHS Status ROHS3 Compliant
