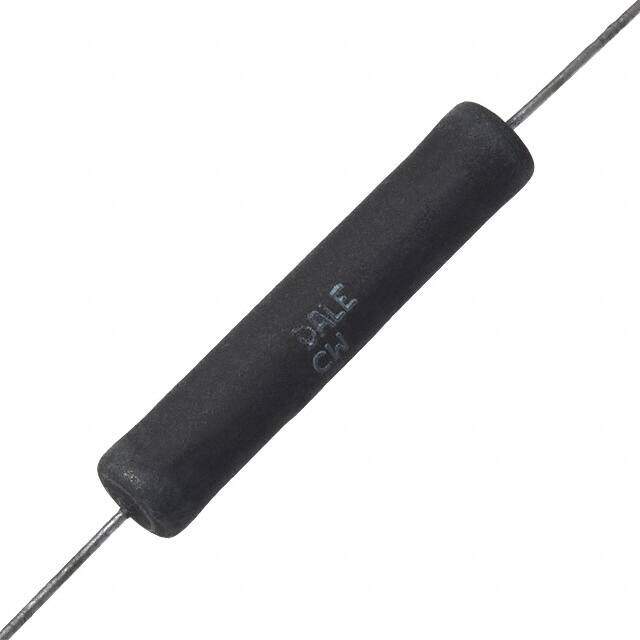

CW0102K000JS70
RoHS
/
Package Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR CW 0.375Diax1.781L 9.52mmx45.24mm 13W 2kOhm ±30ppm/C
PDF
/
Inventory: 5123
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 28 Weeks
Physical
Package / Case Axial
Surface Mount NO
Mounting Feature THROUGH HOLE MOUNT
Technical
Operating Temperature -65°C~350°C
Packaging Tape & Reel (TR)
Series CW
Size / Dimension 0.375Diax1.781L 9.52mmx45.24mm
Tolerance ±5%
JESD-609 Code e0
Feature Moisture Resistant
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±30ppm/°C
Resistance 2kOhm
Terminal Finish Tin/Lead (Sn/Pb)
Composition Wirewound
Power (Watts) 13W
Subcategory Fixed Resistors
Packing Method TR
Max Power Dissipation 10W
Technology WIRE WOUND
Construction All-Welded
Resistor Type FIXED RESISTOR
Lead Length 38.1mm
Compliance
RoHS Status Non-RoHS Compliant
