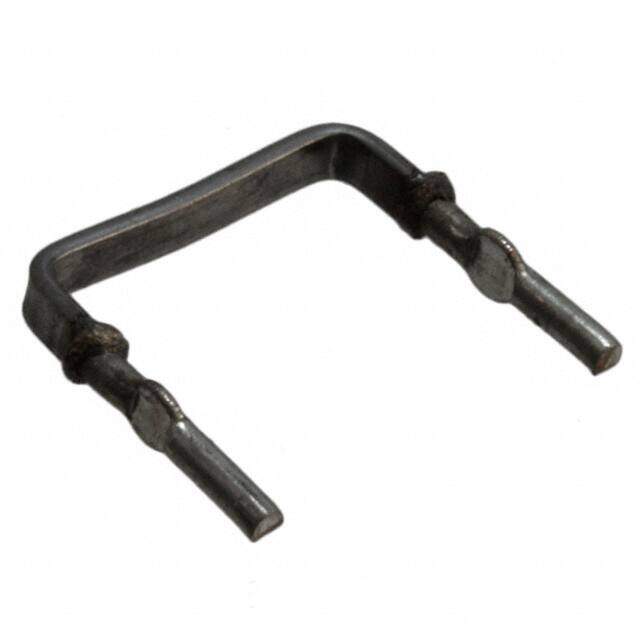

OAR1R003JLF
RoHS
/
Package Radial
Category Resistors / Through Hole Resistors
Description
Radial FIXED RESISTOR OAR 0.450Lx0.065W 11.43mmx1.65mm 3mOhm ±20ppm/C ±5%
PDF
/
Inventory: 4780
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height Seated (Max) 0.320 8.12mm
Height 8.128mm
Technical
Size Code 4506
Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Construction Welded
Technology METAL ALLOY
Max Power Dissipation 1W
Subcategory FIXED RESISTOR
Composition Metal Element
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Resistance 3mOhm
Temperature Coefficient ±20ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Feature Current Sense, Flame Proof, Pulse Withstanding, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.450Lx0.065W 11.43mmx1.65mm
Series OAR
Packaging Bulk
Operating Temperature -40°C~125°C
Physical
Mounting Feature THROUGH HOLE MOUNT
Terminal Shape WIRE
Surface Mount NO
Package / Case Radial
