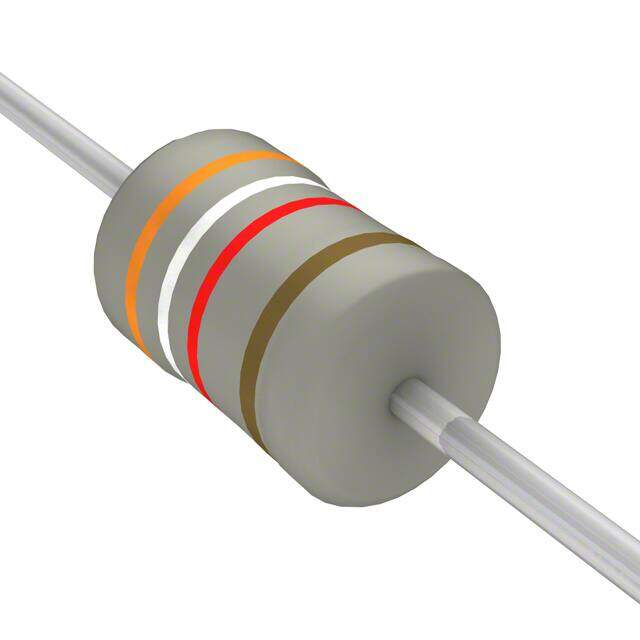

LR2F3K9 image
Favorite
RoHS
RoHS RoHS compliant
Package Axial
Category Resistors / Through Hole Resistors
Description Axial FIXED RESISTOR LR Neohm 0.138Diax0.382L 3.50mmx9.70mm 0.75W 3/4W 3.9kOhm ±100ppm/C
PDF
/
Inventory: 960
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 16 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)

Physical

Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE

Technical

Operating Temperature -55°C~155°C
Packaging Tape & Box (TB)
Published 2007
Series LR, Neohm
Size / Dimension 0.138Diax0.382L 3.50mmx9.70mm
Tolerance ±1%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±100ppm/°C
Resistance 3.9kOhm
Terminal Finish Tin (Sn)
Composition Metal Film
Power (Watts) 0.75W 3/4W
Voltage - Rated 350V
Additional Feature PRECISION
Subcategory FIXED RESISTOR
Power Rating 750mW
Voltage - Rated DC 350V
Packing Method AMMO PACK
Max Power Dissipation 750mW
Technology THIN FILM
Construction Tubular
Resistor Type FIXED RESISTOR
Military Standard Not
Rated Power Dissipation (P) 0.75W
ELV Compliant
Number of Resistors 1

Dimensions

Diameter 3.5mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
