RSMF5JB33K0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

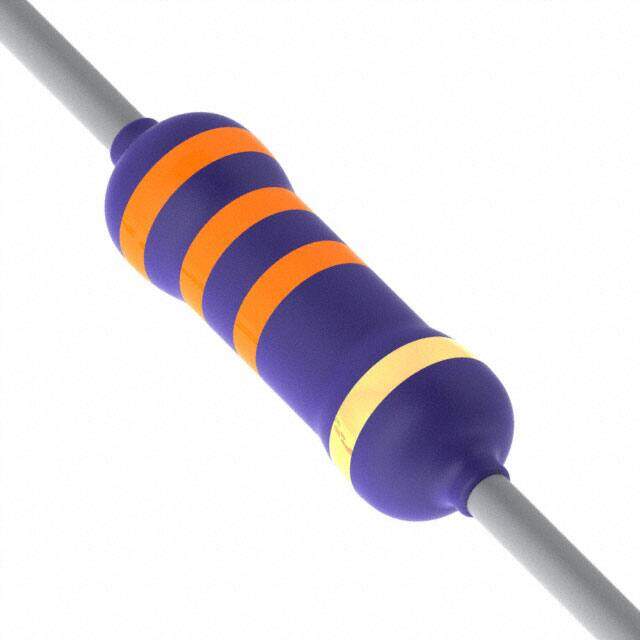

Axial FIXED RESISTOR RSMF 0.236Diax0.689L 6.00mmx17.50mm 33kOhm ±200ppm/C ±5%
PDF
/
Inventory: 8897
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Lead Diameter 0.8 mm
Working Voltage 1000V
Lead Length 30mm
Rated Power Dissipation (P) 5W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 5W
Composition Metal Oxide Film
Terminal Finish Matte Tin (Sn)
Resistance 33kOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Proof, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.236Diax0.689L 6.00mmx17.50mm
Series RSMF
Published 2012
Packaging Bulk
Operating Temperature -55°C~235°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Supply Chain
Factory Lead Time 15 Weeks
