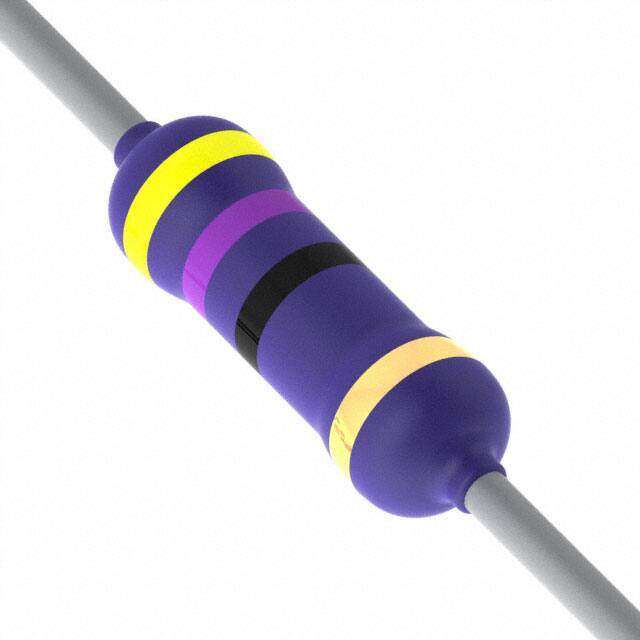

RSMF3JA47R0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RSMF 0.217Diax0.591L 5.50mmx15.00mm 47Ohm ±200ppm/C ±5%
PDF
/
Inventory: 8650
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Package / Case Axial
Surface Mount NO
Terminal Shape WIRE
Mounting Feature THROUGH HOLE MOUNT
Technical
Operating Temperature -55°C~235°C
Packaging Tape & Box (TB)
Published 2010
Series RSMF
Size / Dimension 0.217Diax0.591L 5.50mmx15.00mm
Tolerance ±5%
JESD-609 Code e3
Feature Flame Proof, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±200ppm/°C
Resistance 47Ohm
Terminal Finish Matte Tin (Sn)
Composition Metal Oxide Film
Packing Method AMMO PACK
Max Power Dissipation 3W
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 3W
Working Voltage 500V
Lead Diameter 0.75 mm
Compliance
RoHS Status ROHS3 Compliant
