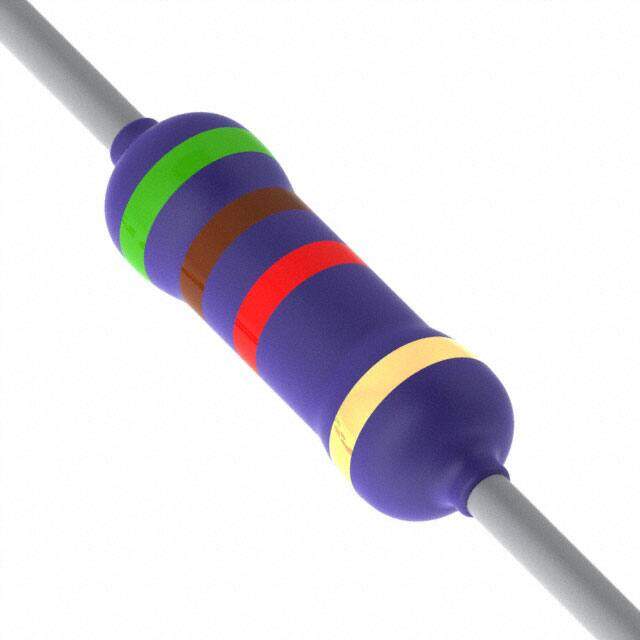

RSMF1JT5K10
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RSMF 0.126Diax0.354L 3.20mmx9.00mm 1W 5.1kOhm ±200ppm/C
PDF
/
Inventory: 8466
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 3.2mm
Technical
Working Voltage 350V
Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 1W
Packing Method TR, 13.5 INCH
Power Rating 1W
Composition Metal Oxide Film
Resistance 5.1kOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Proof, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.126Diax0.354L 3.20mmx9.00mm
Series RSMF
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~200°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 20 Weeks
