RSMF1JT43K0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

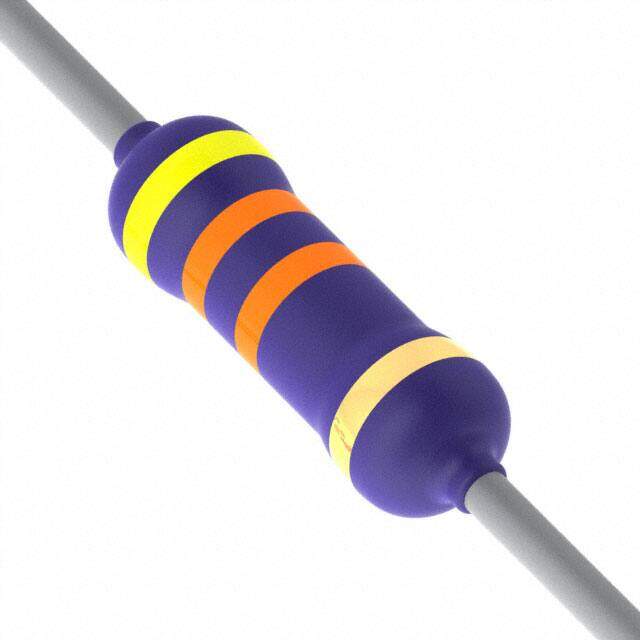

Axial FIXED RESISTOR RSMF 0.126Diax0.354L 3.20mmx9.00mm 1W 43kOhm ±200ppm/C
PDF
/
Inventory: 4306
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Plating Tin
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~200°C
Packaging Tape & Reel (TR)
Published 2010
Series RSMF
Size / Dimension 0.126Diax0.354L 3.20mmx9.00mm
Tolerance ±5%
JESD-609 Code e3
Feature Flame Proof, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Temperature Coefficient ±200ppm/°C
Resistance 43kOhm
Composition Metal Oxide Film
Power Rating 1W
Packing Method TR, 13.5 INCH
Max Power Dissipation 1W
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 1W
Working Voltage 350V
Dimensions
Diameter 3.2mm
Compliance
RoHS Status ROHS3 Compliant
