RSMF12JT68R0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

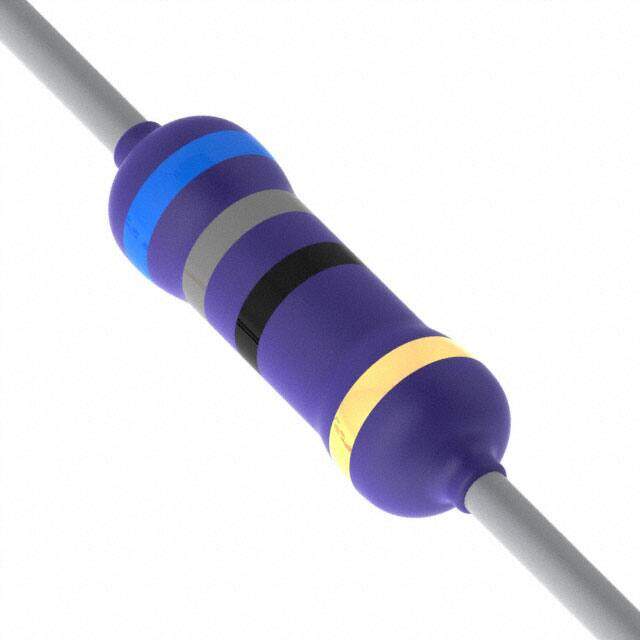

Axial FIXED RESISTOR RSMF 0.091Diax0.236L 2.30mmx6.00mm 0.5W 1/2W 68Ohm ±200ppm/C
PDF
/
Inventory: 4879
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 2.3mm
Technical
Rated Power Dissipation (P) 0.5W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 500mW
Packing Method TR, 13.5 INCH
Power (Watts) 0.5W 1/2W
Composition Metal Oxide Film
Resistance 68Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Proof, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.091Diax0.236L 2.30mmx6.00mm
Series RSMF
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~200°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 20 Weeks
