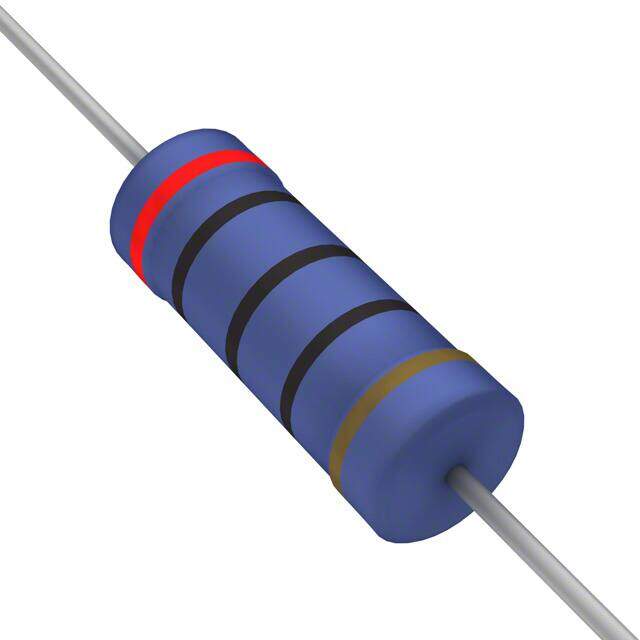

RSF3FT200R
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RSF 0.236Diax0.689L 6.00mmx17.50mm 200Ohm ±200ppm/C ±1%
PDF
/
Inventory: 7413
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Lead Diameter 0.8 mm
Working Voltage 800V
Rated Power Dissipation (P) 3W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 3W
Additional Feature FLAME PROOF
Composition Metal Oxide Film
Terminal Finish Matte Tin (Sn)
Resistance 200Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.236Diax0.689L 6.00mmx17.50mm
Series RSF
Packaging Tape & Reel (TR)
Operating Temperature -55°C~235°C
Physical
Mounting Feature THROUGH HOLE MOUNT
Terminal Shape WIRE
Surface Mount NO
Package / Case Axial
Supply Chain
Factory Lead Time 14 Weeks
