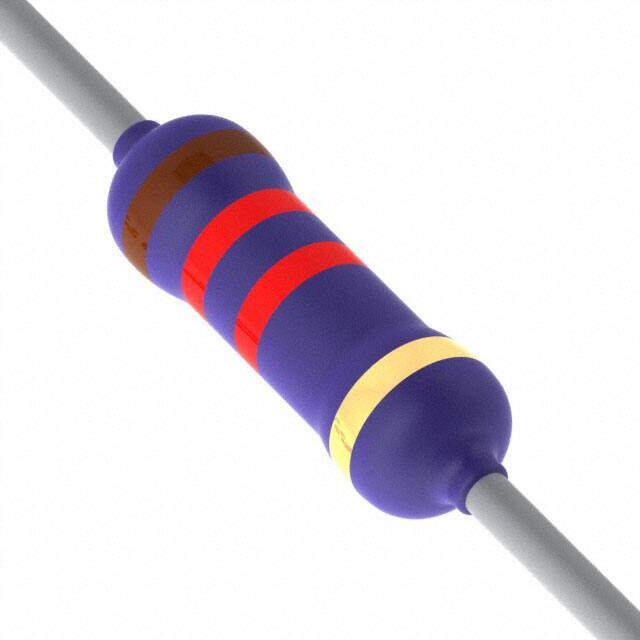

RSF2JA1K20
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RSF 0.217Diax0.591L 5.50mmx15.00mm 1.2kOhm ±200ppm/C ±5%
PDF
/
Inventory: 4070
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Lead Diameter 0.75 mm
Working Voltage 350V
Rated Power Dissipation (P) 2W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 2W
Packing Method AMMO PACK
Additional Feature FLAME PROOF
Composition Metal Oxide Film
Terminal Finish Matte Tin (Sn)
Resistance 1.2kOhm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.217Diax0.591L 5.50mmx15.00mm
Series RSF
Published 2010
Packaging Tape & Box (TB)
Operating Temperature -55°C~235°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Supply Chain
Factory Lead Time 20 Weeks
