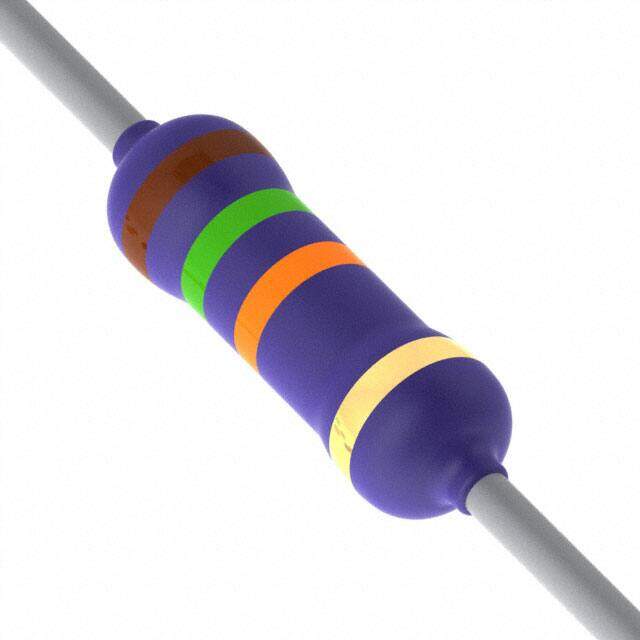

RSF2JA15K0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
RES 15K OHM 2W 5% AXIAL
PDF
/
Inventory: 2445
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~235°C
Packaging Tape & Box (TB)
Series RSF
Size / Dimension 0.217Diax0.591L 5.50mmx15.00mm
Tolerance ±5%
JESD-609 Code e3
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±200ppm/°C
Resistance 15kOhm
Terminal Finish Matte Tin (Sn)
Composition Metal Oxide Film
Power (Watts) 2W
Additional Feature FLAME PROOF
Packing Method AMMO PACK
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 2W
Working Voltage 350V
Lead Diameter 0.75 mm
Compliance
RoHS Status ROHS3 Compliant
