RSF1GT24R0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

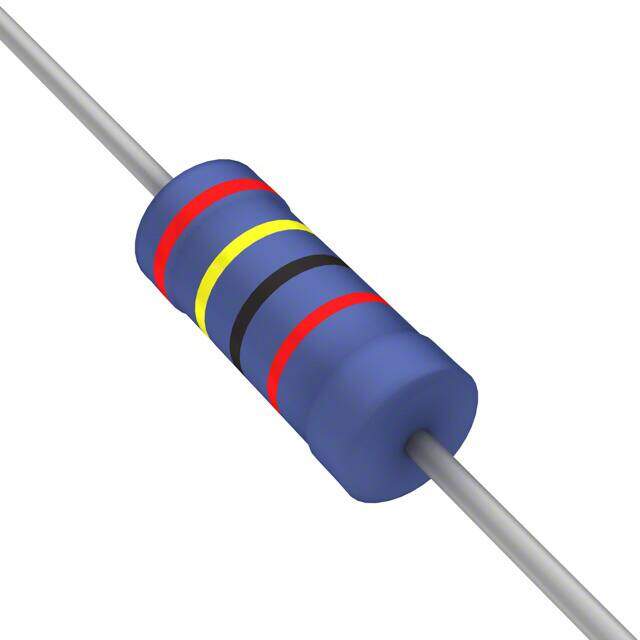

Axial FIXED RESISTOR RSF 0.177Diax0.433L 4.50mmx11.00mm 24Ohm ±200ppm/C ±2%
PDF
/
Inventory: 2687
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Lead Diameter 0.8 mm
Working Voltage 350V
Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 1W
Packing Method TR, 13.5 INCH
Additional Feature FLAME PROOF
Composition Metal Oxide Film
Terminal Finish Matte Tin (Sn)
Resistance 24Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e3
Tolerance ±2%
Size / Dimension 0.177Diax0.433L 4.50mmx11.00mm
Series RSF
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~235°C
Physical
Mounting Feature THROUGH HOLE MOUNT
Terminal Shape WIRE
Surface Mount NO
Package / Case Axial
Supply Chain
Factory Lead Time 14 Weeks
