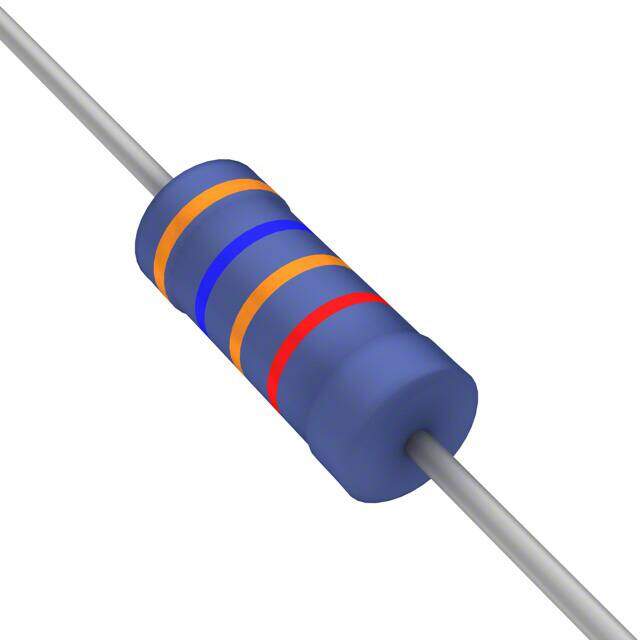

RSF1GB36K0
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RSF 0.177Diax0.433L 4.50mmx11.00mm 1W 36kOhm ±200ppm/C
PDF
/
Inventory: 3536
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Contact Plating Copper, Tin
Mount Axial, Through Hole
Package / Case Axial
Terminal Shape WIRE
Technical
Operating Temperature -55°C~235°C
Packaging Bulk
Published 2010
Series RSF
Size / Dimension 0.177Diax0.433L 4.50mmx11.00mm
Tolerance ±2%
JESD-609 Code e3
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±200ppm/°C
Resistance 36kOhm
Terminal Finish Matte Tin (Sn)
Composition Metal Oxide Film
Additional Feature FLAME PROOF
Power Rating 1W
Max Power Dissipation 1W
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 1W
Working Voltage 350V
Dimensions
Diameter 4.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Alternative Model
