RNF12FTC8K25
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

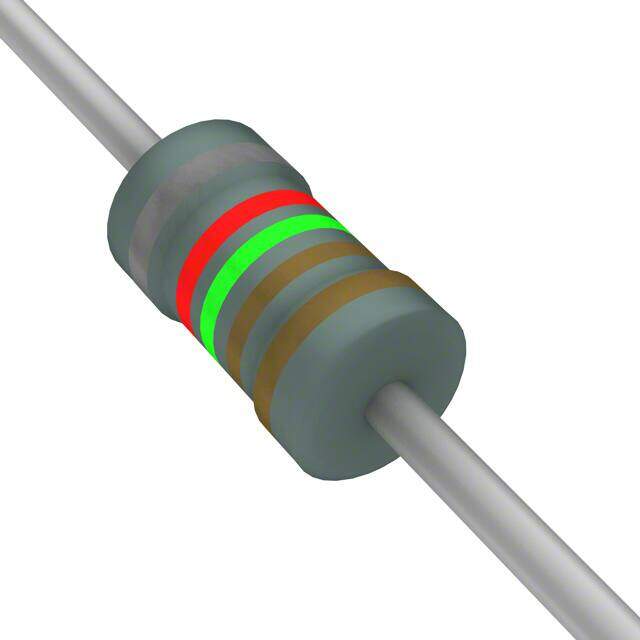

Axial FIXED RESISTOR RNF 0.108Diax0.344L 2.75mmx8.75mm 0.5W 1/2W 8.25kOhm ±50ppm/C
PDF
/
Inventory: 6696
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Package / Case Axial
Surface Mount NO
Terminal Shape WIRE
Mounting Feature THROUGH HOLE MOUNT
Technical
Operating Temperature -55°C~155°C
Packaging Tape & Reel (TR)
Series RNF
Size / Dimension 0.108Diax0.344L 2.75mmx8.75mm
Tolerance ±1%
JESD-609 Code e3
Feature Flame Retardant Coating, Safety
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient ±50ppm/°C
Resistance 8.25kOhm
Terminal Finish Matte Tin (Sn)
Composition Metal Film
Power (Watts) 0.5W 1/2W
Additional Feature FLAME PROOF
Power Rating 500mW
Max Power Dissipation 500mW
Construction Tubular
Resistor Type FIXED RESISTOR
Rated Power Dissipation (P) 0.5W
Working Voltage 350V
Lead Diameter 0.65 mm
Compliance
RoHS Status ROHS3 Compliant
