RC14KT3K90
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description

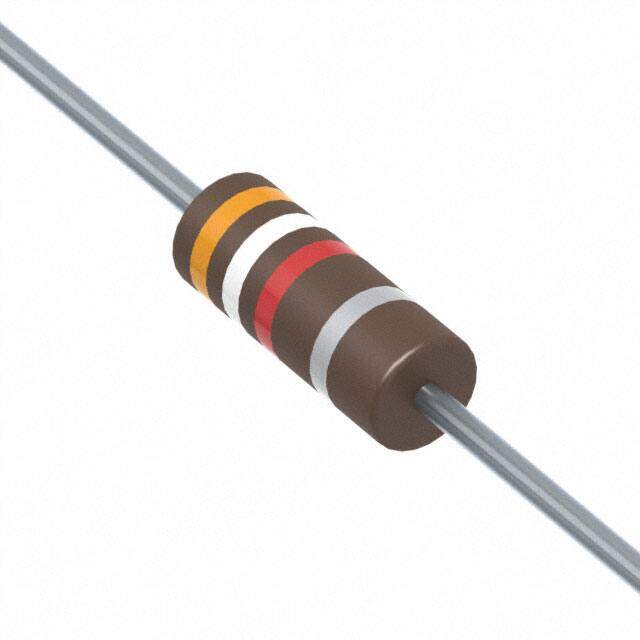

Axial FIXED RESISTOR RC 0.094Diax0.248L 2.40mmx6.30mm 0.25W 1/4W 3.9kOhm ±10%
PDF
/
Inventory: 1454
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 2.4mm
Technical
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 250mW
Packing Method TR, 13.5 INCH
HTS Code 8533.10.00.60
Power (Watts) 0.25W 1/4W
Composition Carbon Composition
Resistance 3.9kOhm
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Non-Inductive, Pulse Withstanding
JESD-609 Code e3
Tolerance ±10%
Size / Dimension 0.094Diax0.248L 2.40mmx6.30mm
Series RC
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 28 Weeks
